BMK4A-B

Name: Balance Systems SRL
Address: Via Roberto Ruஜli 8/10, Pessano con Bornago, Milano, 20060, ITALIA

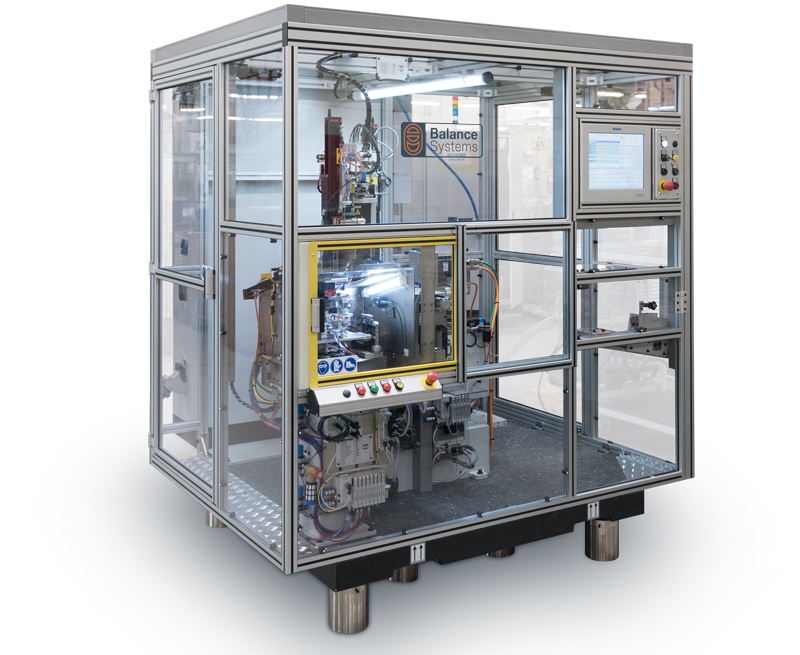

Semi-automatic balancing machine for balancing rotors for brushless motors.

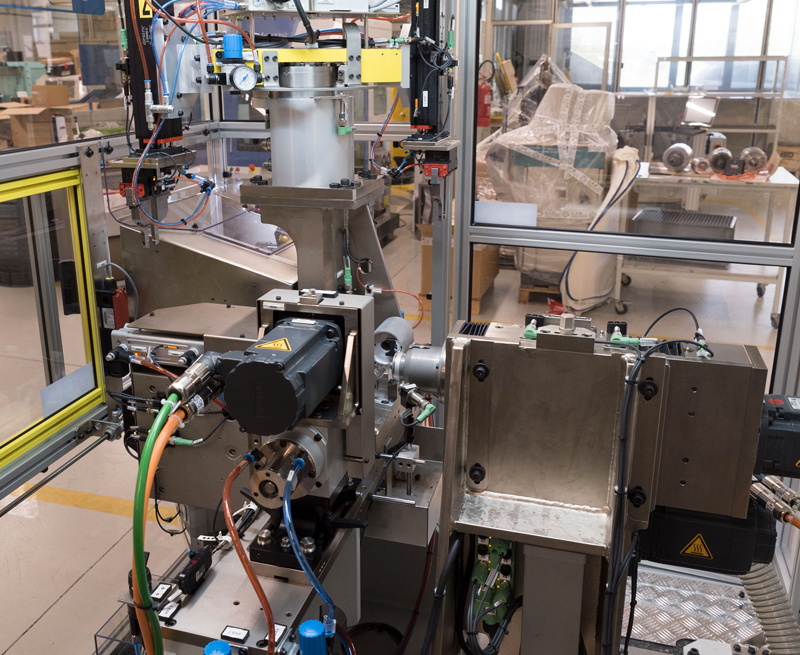

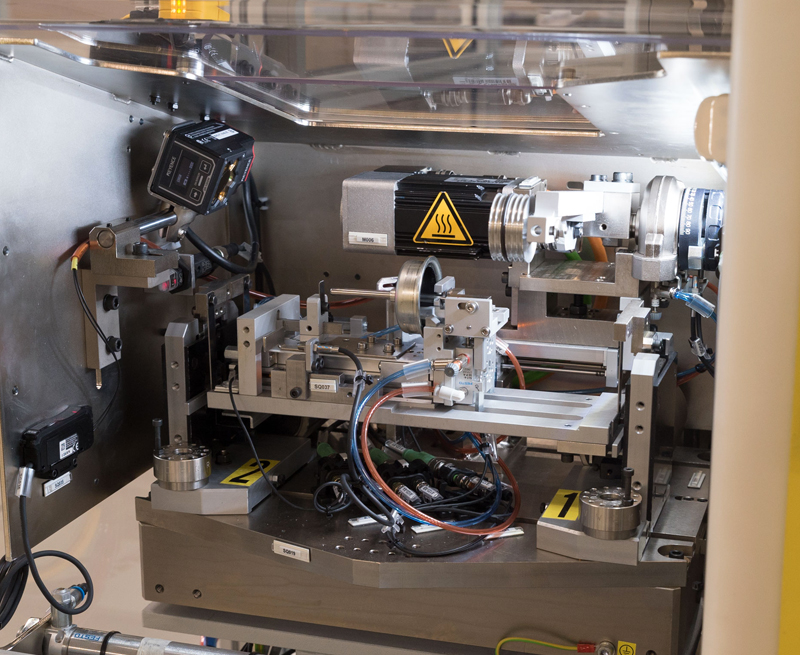

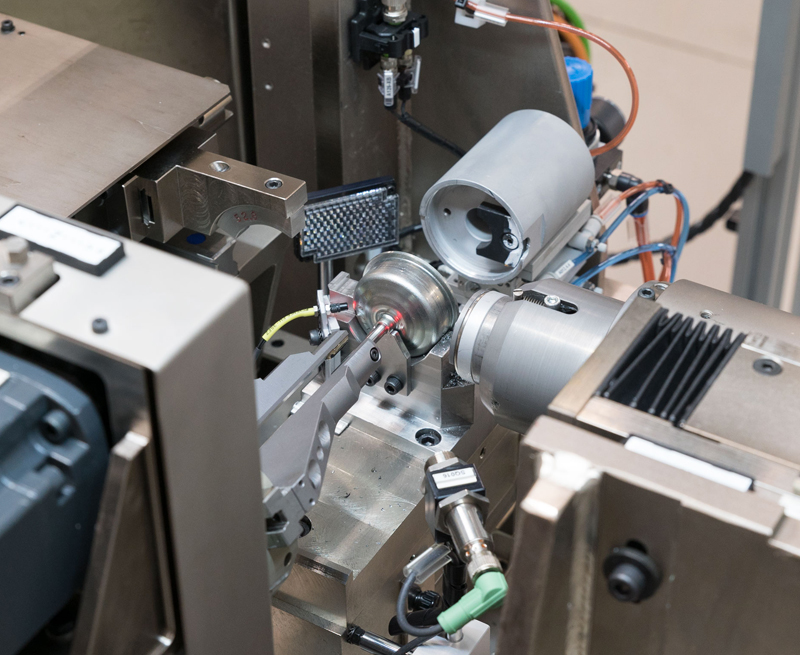

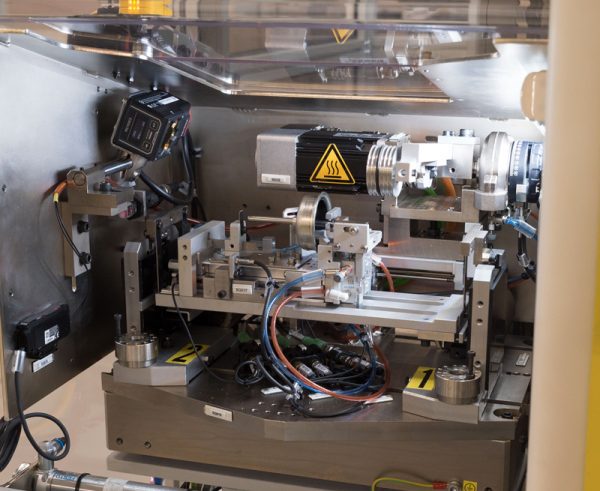

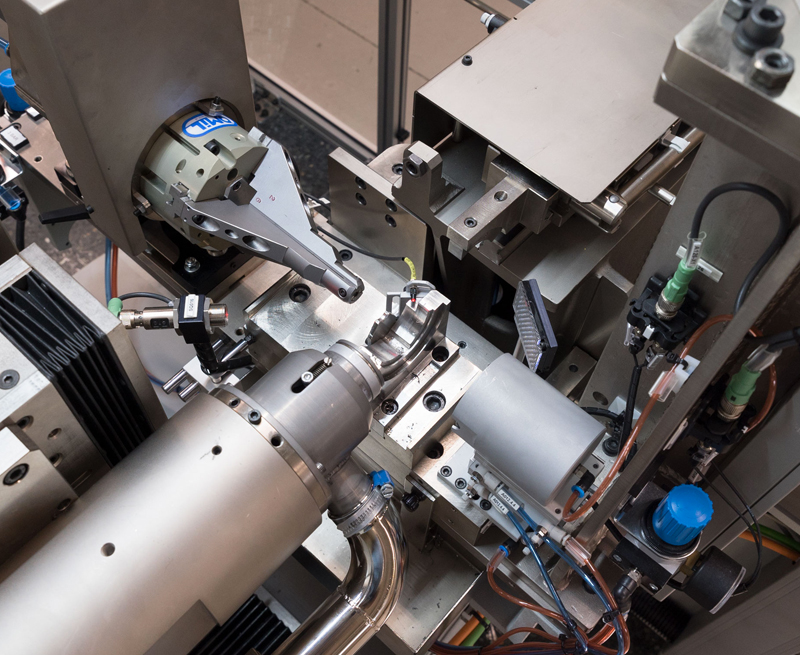

Composed of: measuring unit, milling unit for left and right planes and pneumatic pick and place for the manipulation of the parts (from measuring unit to milling unit and vice versa) to audit the balanced rotors.
Standard configuration with milling in length.
The machine can be delivered (upon request) with components or polar milling tools.
Manual loading / unloading.

Product Description

Technical data
Max rotor weight:	3 kg (6,61 lb)
Rotors OD:	10-85 mm (0,39-3,35 in)
Stack lamination height:	10-80 mm (0,39-4,72 in)
Machine cycle time (measuring, milling, re-cheking):	24 s
Controlled by:	Industrial PC
Measuring precision:	0.1 gmm/kg (0,04 oz.in/lb)
Balancing methods:	Vectorial, polar, milling in length and depth
Machine dimensions (LxWxH):	1950 x 1500 x 2000 mm (76,77 x 59,06 x 78,74 in)

Options
Teleservice
SPC/SW and printer
Vacuum system to remove the milling chips
Device to balance rotors with bearing

Tipo di automazione	Semi-automatic
