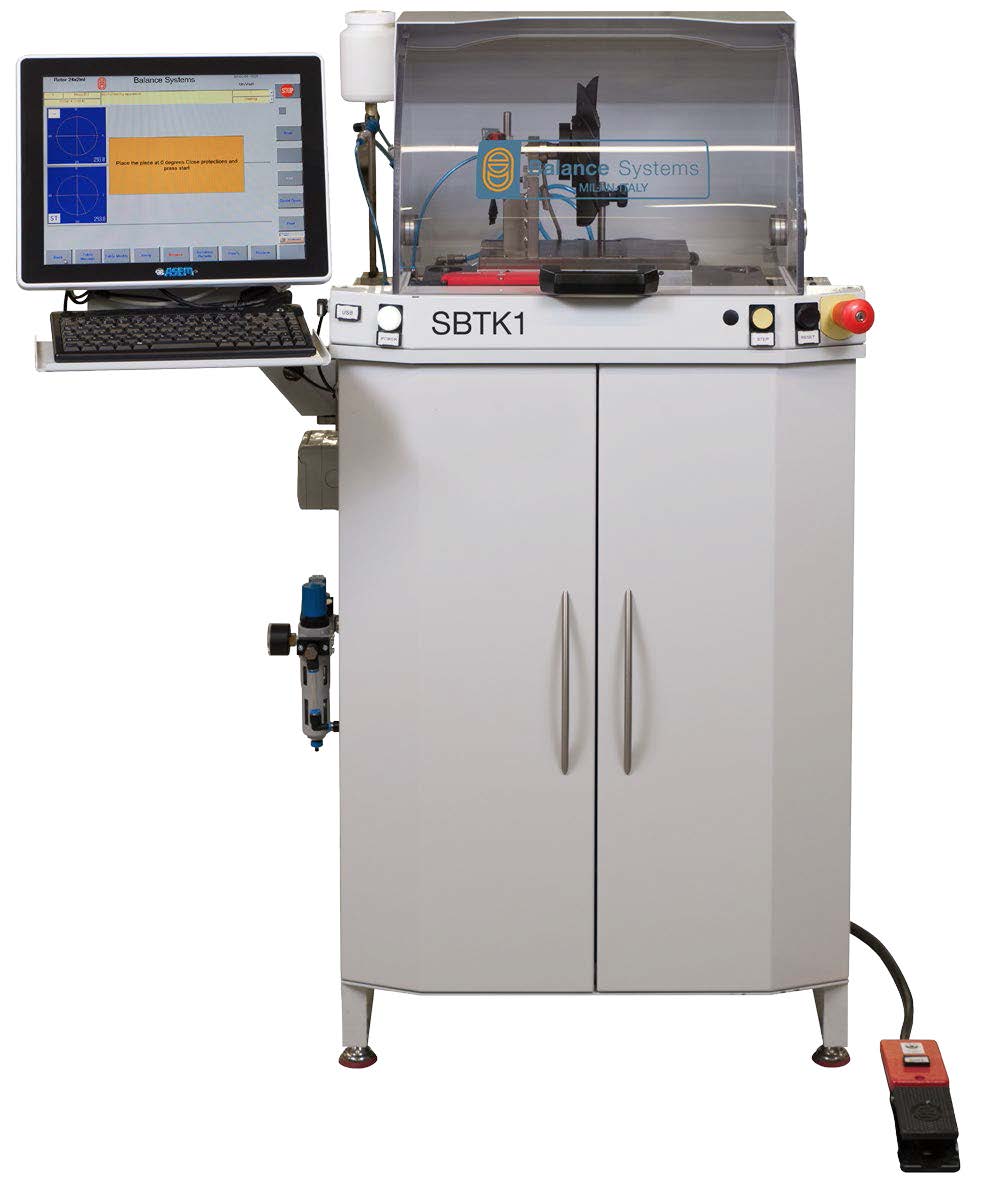

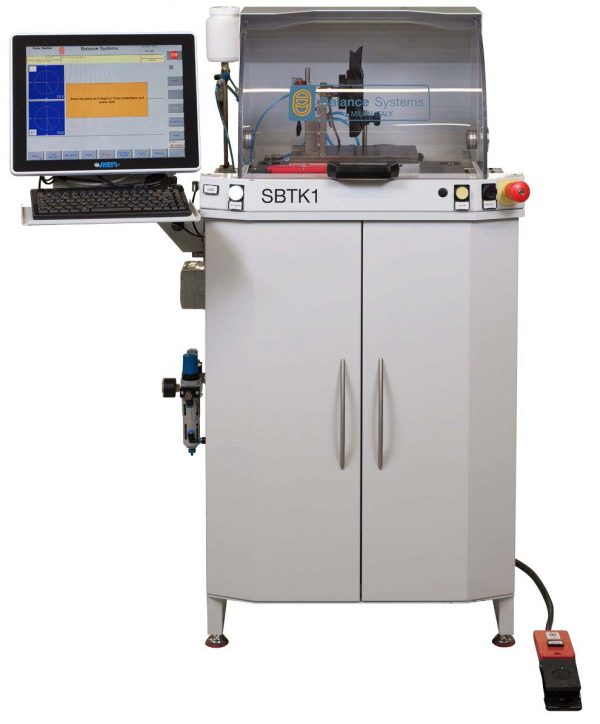

Manual balancing machine

Features

Manual balancing machine able to measure the unbalance of rotors fans on two planes (dynamic) or on one plane (static). The correction of the unbalances is carried out manually and it is performed by adding clips on blades fans.
The machine can balance fans or motors assembled with fans.
Operator interface by industrial PC.
High level of flexibility and quick changeover.

Advantages

High level of flexibility
High measuring precision
High balancing precision
Quick changeover
User friendly

Automotive Components, Balancing machines, Blowers with brushless motors, HVAC blowers.

Product Description

Technical data
Max parts weigh:	4 kg (8,82 lb)
Max fan diameter:	200 mm (7,87 in)
Measuring time:	10 s
Controlled by:	Industrial PC
Measuring precision:	0.1 gmm/kg max (0,04 oz.in/lb)
Power supply:	110-220 V single-phase 50/60 Hz, 1 kW
Machine dimensions (LxWxH	600 x 700 x 1400 mm (23,62 x 27,56 x 55,12 in)
Weight:	200 kg (440,93 lb)

Options
SPC Software
Printer
Teleservice

Additional Information

Tipo di automazione	Manual
